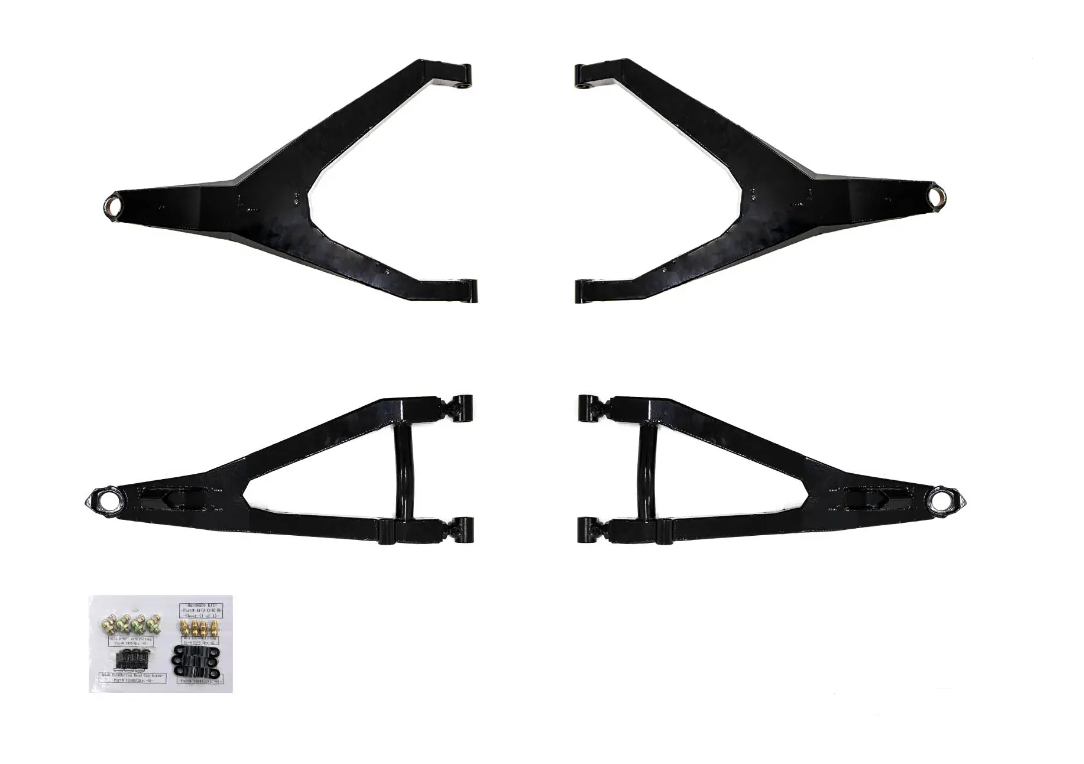

SuperATV High Clearance Boxed Front A-Arms For Can-Am Maverick X3 – Keller Ball Joints
$1,172.79
Only 1 left in stock
Description
Manufacturer SKU:
AA-CA-X3RS-001-BX-BK-02
Description from the Manufacturer:
Groundbreaking A-Arms
Speeding on the trails is always fun until your stock A-arms break because you crashed into a stump. Now your ride got cut short and your Can-Am Maverick X3 has to limp home. Riding with SuperATV’s High-Clearance Boxed Front A-Arms means that won’t happen. They’re stronger than stock and give you an extra 1.5” of ground clearance, so you can avoid those pesky ruts and rocks. If you decide to add a lift and larger tires, you can adjust your camber. Next time, you’ll be the one breaking the trails.

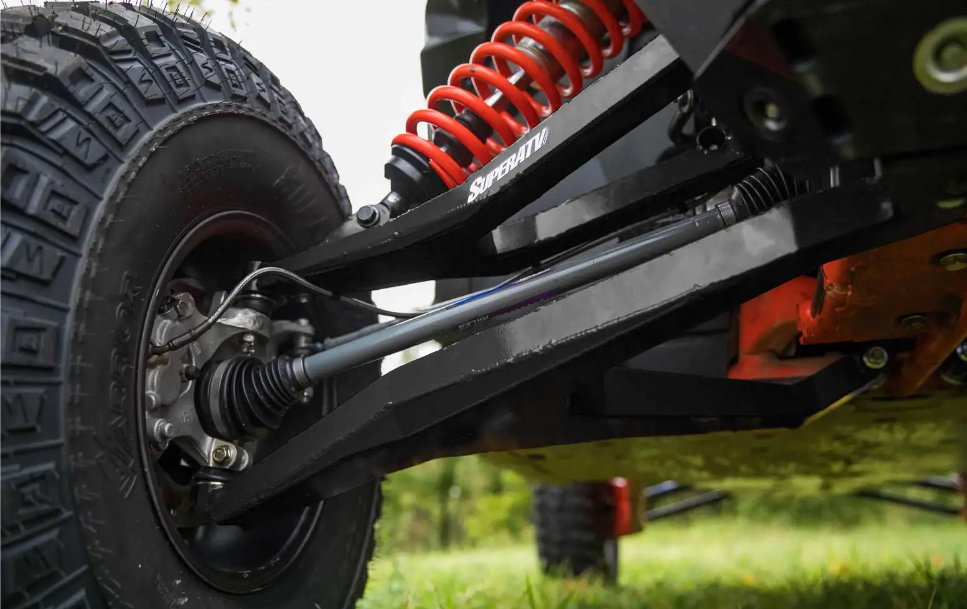

Extra Clearance Makes Riding Easy
Riding your next trail just got easier. Our A-arms are designed with high-clearance bends that give you an extra 1.5” of ground clearance. Your Maverick X3 will smoothly glide over obstacles without needing a lift.
Irresistible Strength
When bashing through trees, you need control arms that won’t snap, no matter how hard you ride. Thank goodness these boxed A-arms use 1/8” heavy-duty steel plating that can take a beating. We finish them off with a UV-resistant powder coating that keeps them corrosion-free. That’s what extra strength looks like.
Easily Adjust Your Camber
SuperATV gives you more control with our adjustable pivot blocks. They’re pre-adjusted to stock specs out of the box, so you don’t have to bother with changing the camber. But it could save your tires if you add a lift or weight, so we give you the ability to adjust on the fly.
Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.

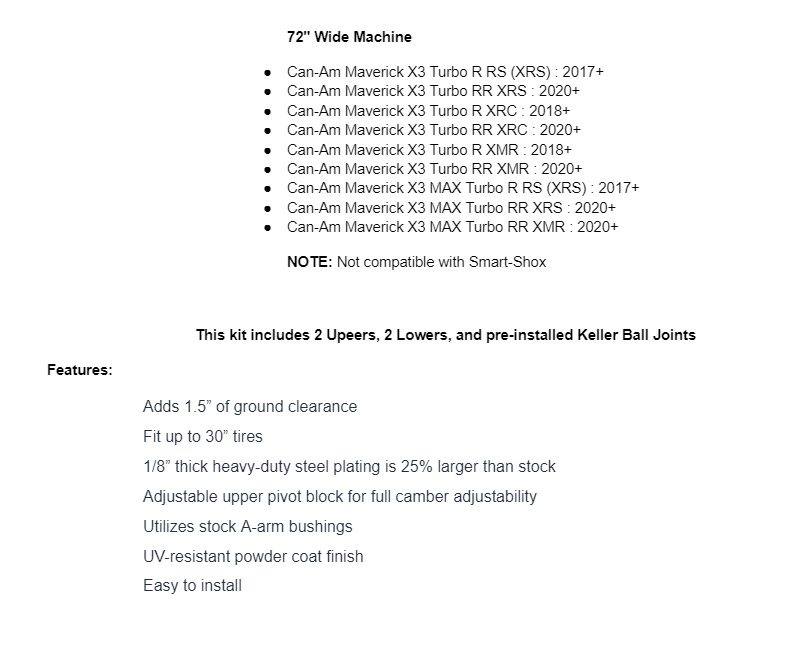

Fitment:
72″ Wide Machine
- Can-Am Maverick X3 Turbo R RS (XRS) : 2017+
- Can-Am Maverick X3 Turbo RR XRS : 2020+
- Can-Am Maverick X3 Turbo R XRC : 2018+
- Can-Am Maverick X3 Turbo RR XRC : 2020+
- Can-Am Maverick X3 Turbo R XMR : 2018+
- Can-Am Maverick X3 Turbo RR XMR : 2020+
- Can-Am Maverick X3 MAX Turbo R RS (XRS) : 2017+
- Can-Am Maverick X3 MAX Turbo RR XRS : 2020+
- Can-Am Maverick X3 MAX Turbo RR XMR : 2020+
NOTE: Not compatible with Smart-Shox
Features:
- Adds 1.5” of ground clearance
- Fit up to 30” tires
- 1/8” thick heavy-duty steel plating is 25% larger than stock
- Adjustable upper pivot block for full camber adjustability
- Utilizes stock A-arm bushings
- UV-resistant powder coat finish
- Easy to install
Additional information
| Weight | 75 lbs |
|---|---|
| Dimensions | 34 × 31 × 10 in |
| Type | |
| Features | 1/8” thick heavy-duty steel plating is 25% larger than stock |
| MPN | |
| Manufacturer Part Number | |
| Brand | |
| Number in Pack | |
| Warranty | |
| Item Length | |
| Item Width | |
| Item Height | |
| Item Weight | |
| Manufacturer | |
| Model | |
| Manufacturer SKU | |
| California Prop 65 Warning |
| Condition | New other |
|---|---|
| Notes | Open Box - Excellent Condition - This is a customer returned |
Item Compatibility List
| Make | Model | Submodel | Year | Notes |
|---|---|---|---|---|
| Can-Am | Maverick X3 R | 4x4 XMR Turbo DPS | 2018 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 R | 4x4 XMR Turbo DPS | 2019 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 R | 4x4 XRC Turbo DPS | 2019 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS 72 | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRS Turbo DPS | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS 72 | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 R | 4x4 XRC Turbo DPS | 2018 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS 72 | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS 72 | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRS Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS 72 | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | XRS Turbo | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRS Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRS Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS | 2020 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS 72 | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRS Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRS Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2021 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XMR Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 RR | 4x4 XRC Turbo DPS | 2022 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XRC Turbo DPS | 2024 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2023 | Not compatible with Smart-Shox |
| Can-Am | Maverick X3 Max RR | 4x4 XMR Turbo DPS | 2023 | Not compatible with Smart-Shox |
