SuperATV Pinion Shaft And Snorkel Gear Kit For Polaris RZR XP 1000

Description

Manufacturer SKU:
OPS-P-RZRXP-002

Description from the Manufacturer:
Better Materials—Better Strength
SuperATV’s Pinion Shaft and Snorkel Gear Kit gives your Polaris RZR the strength it needs to keep going. We build ours with them same high-strength gear material used in NASCAR, 9310 alloy steel, to make sure it can withstand all the abuse and torque you throw at it. We test EVERY set of gears to make sure they are perfectly mated and running smooth.

The snorkel gear and pinion gear in your transmission do more work than just about any other gear in your UTV, so a broken snorkel can lead to more transmission damage, case damage or other gear failures. Don’t mess around—it’s time to upgrade to SuperATV’s heavy-duty Pinion Shaft and Snorkel Gear kit.

We Test Every Gear
Our snorkel and pinion gears are lapped before we send them to you. That means we run each pair of gears together in a special process until they are smooth and mate perfectly. Our gears are literally made for each other. You get better efficiency and smoother operation than stock from the very first revolution. That means longer and harder rides. Better materials and better engineering — that’s just the way we roll.

Polaris Front Output Shaft – Heavy Duty
Transmission work is hard, so while your busting your knuckles why not reinforce your whole transmission? The GDP front output shaft is 41% stronger than factory, giving you the confidence to hit the trail and keep on going. Unlike factory, GDP’s front output shaft is constructed of industry leading 300M and then heat treated for a precise blend of strength and longevity. To ensure ultimate strength, this material and heat treat combination endured rigorous field and torque testing.

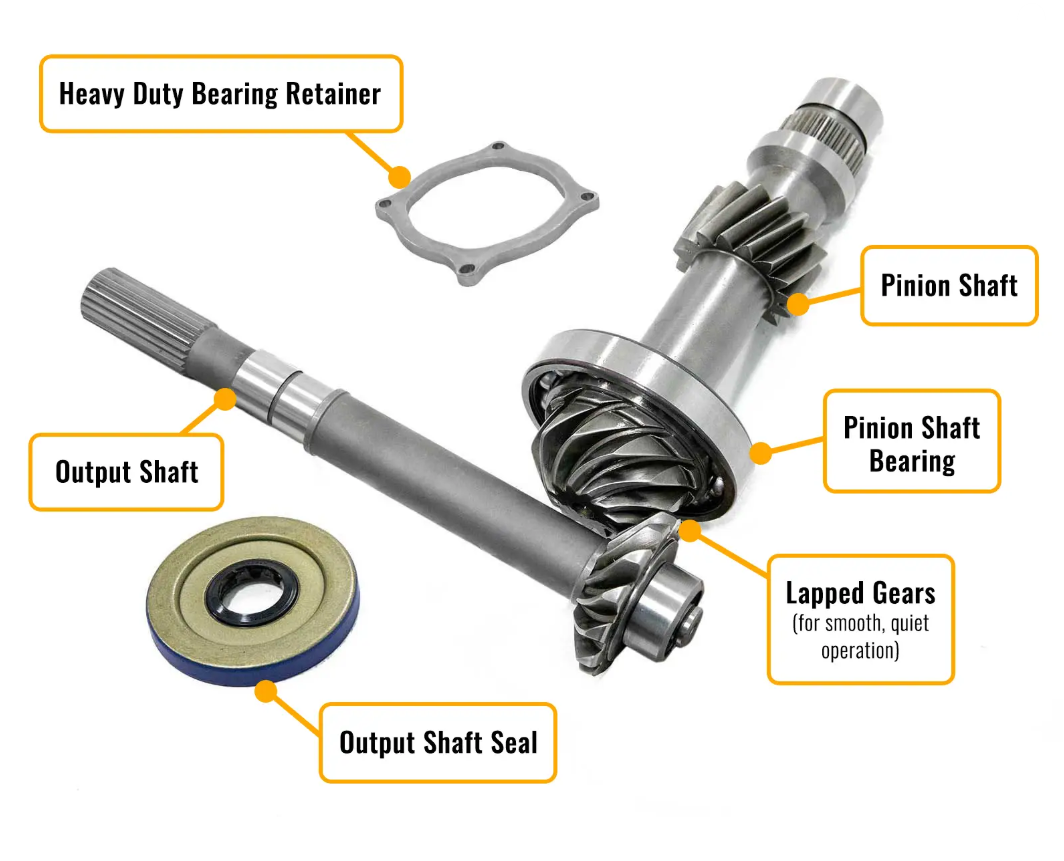

Pinion Shaft and Snorkel Gear Set Includes
Snorkel Gear

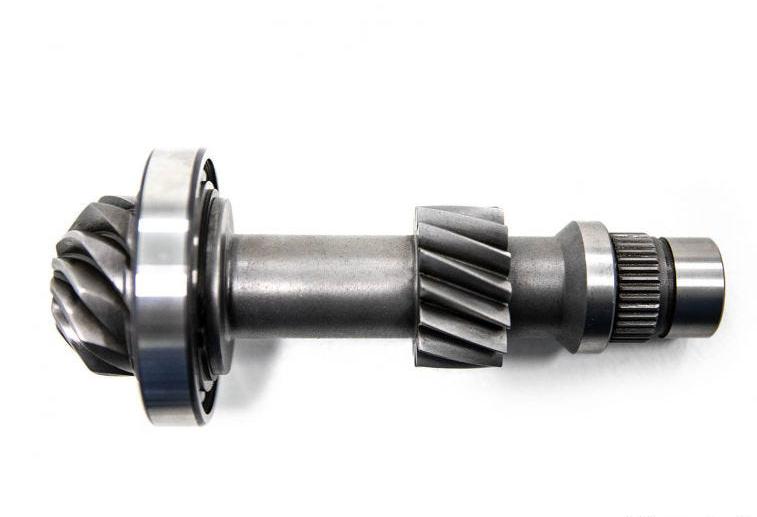

Pinion Shaft (with pinion gear)
Pinion Bearing
Retaining ring
Output shaft seal
Front Output shaft (optional)
Heavy-duty Pinion Bearing Retainer—a 50 value free

Fitment from the Manufacturer:

• Polaris RZR XP 1000 High Lifter Edition : 2017-2019
• Polaris RZR XP 4 1000 High Lifter Edition : 2017-2019
• Polaris RZR XP 1000 Trails & Rocks Edition : 2017-2019

Replaces OEM Part #:
Shaft: 3235956
Snorkel Gear: 3235237

NOTE: These gears are a matched set and must be installed together. They cannot be combined with other manufacturers.

Features from the Manufacturer:

• Pinion shaft and gears made with 9310 heavy-duty steel
• 2.5x stronger than stock
• Lapped gears are mated perfectly for less wear and smoother operation
• Eliminates a major weak spot in the transmission
• Strengthens the drivetrain
