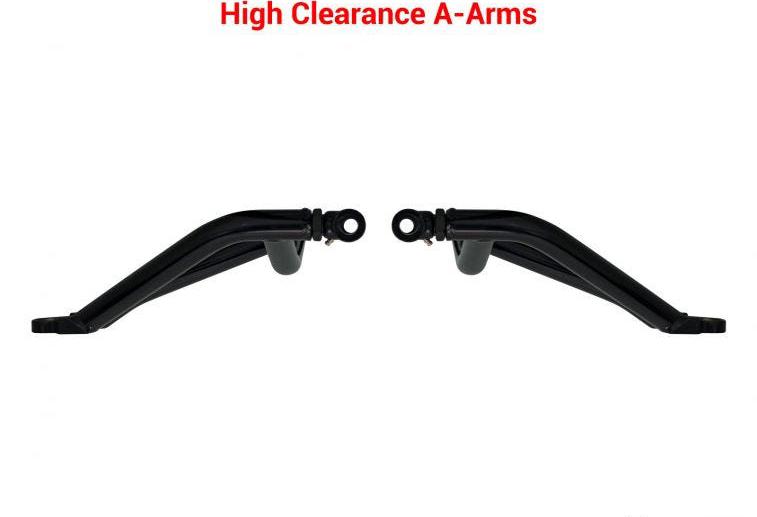

SuperATV High Clearance 1.5″ Offset A-Arms Can-Am (Gen 2) Renegade/Outlander

Description

This set includes Super Duty 300M ball joints

Manufacturer SKU:
AA-CA-GEN2-1.5-HC-BSD-02

Description from the Manufacturer:
These A-Arms Won’t Let You Down
It doesn’t matter where, when, or how you ride—we can all agree on one thing: more ground clearance and a stronger suspension is always a good thing. That’s exactly what you get when you install SuperATV’s High Clearance 1.5” Forward Offset A-Arms on your Can-Am Renegade. Our A-arms are bigger and stronger than your stock arms, so you’ll never have to worry about taking it easy for their sake. The 1.5” forward offset give you more stability and room for bigger tires, and you can even adjust your camber as needed. If you want a suspension upgrade that’s built to perform and won’t let you down, you need SuperATV.

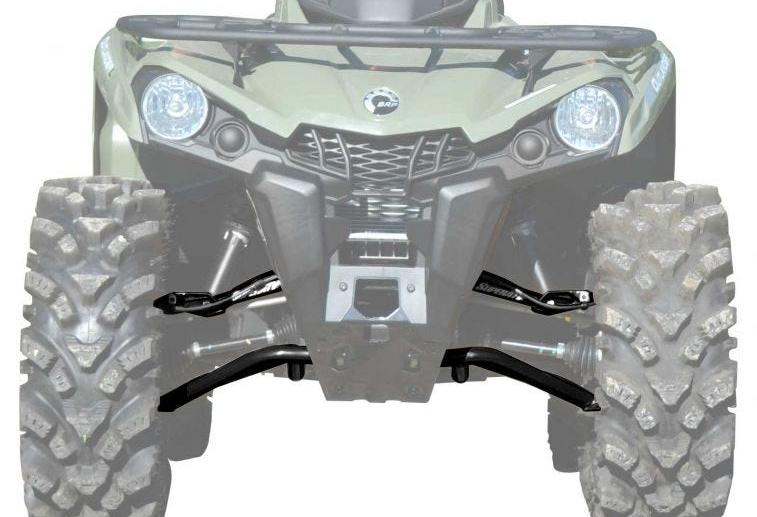

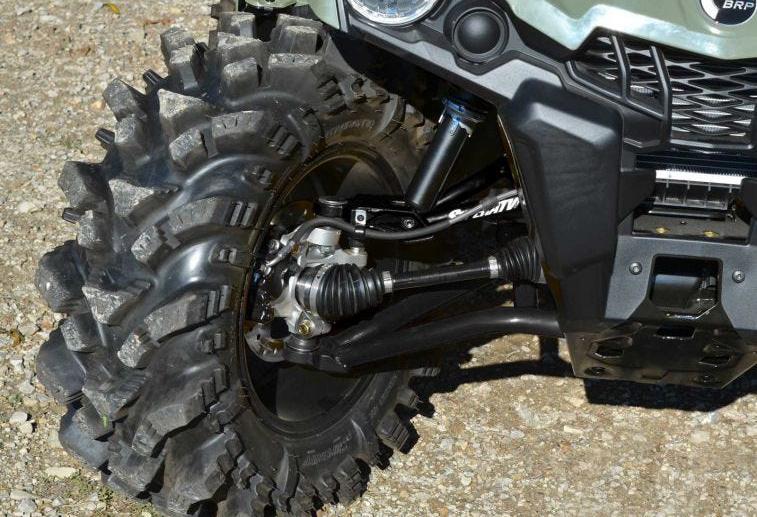

More Clearance and Bigger Tires
We design these control arms with a unique bend design that gives you 1.5” of additional ground clearance, so you can clear those obstacles that used to take you down. As if that weren’t enough, they also have a 1.5” forward offset. By extending the wheelbase 1.5”, you get more stability when crossing rough terrain. A forward offset also gives you room for bigger tires. More ground clearance and bigger tires without even adding a lift kit? We’ll take it!

A Stronger, Smarter Design
These A-arms come in a sleek, tubed design that really helps your Renegade stand out in a crowd. In addition to looking awesome, our A-arms are also super strong. We use 1.25” tubing, which is 25% stronger than stock, and then add a powder-coated finish to make it last even longer. From the materials to the design, SuperATV’s High Clearance A-Arms are made to keep you riding longer.

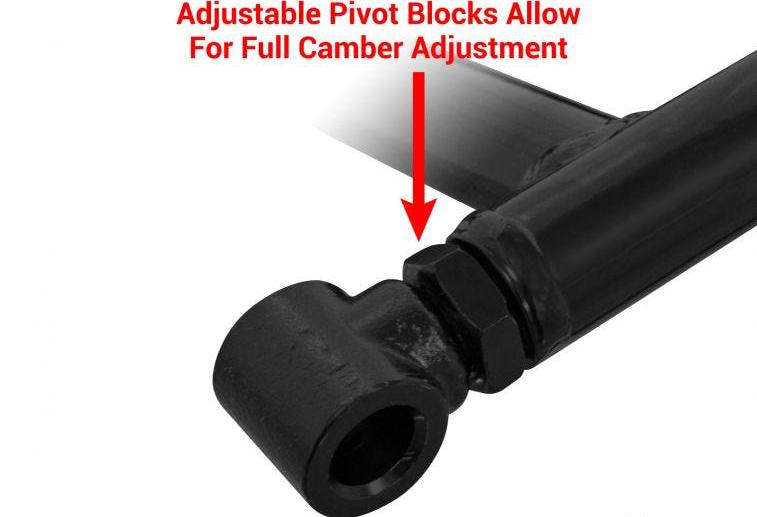

Industry-Leading Adjustable Pivot Blocks
Our use of industry-leading adjustable pivot blocks allows you to adjust your alignment and maintain perfect camber, no matter where or how you ride. Being able to adjust your camber as needed can eliminate the premature tire wear that usually comes along with adding a lift kit or bigger tires. If you don’t want to mess with your pivot blocks, don’t worry! We pre-adjust them to stock specifications right out of the box, so you only need to make adjustments if you want to.

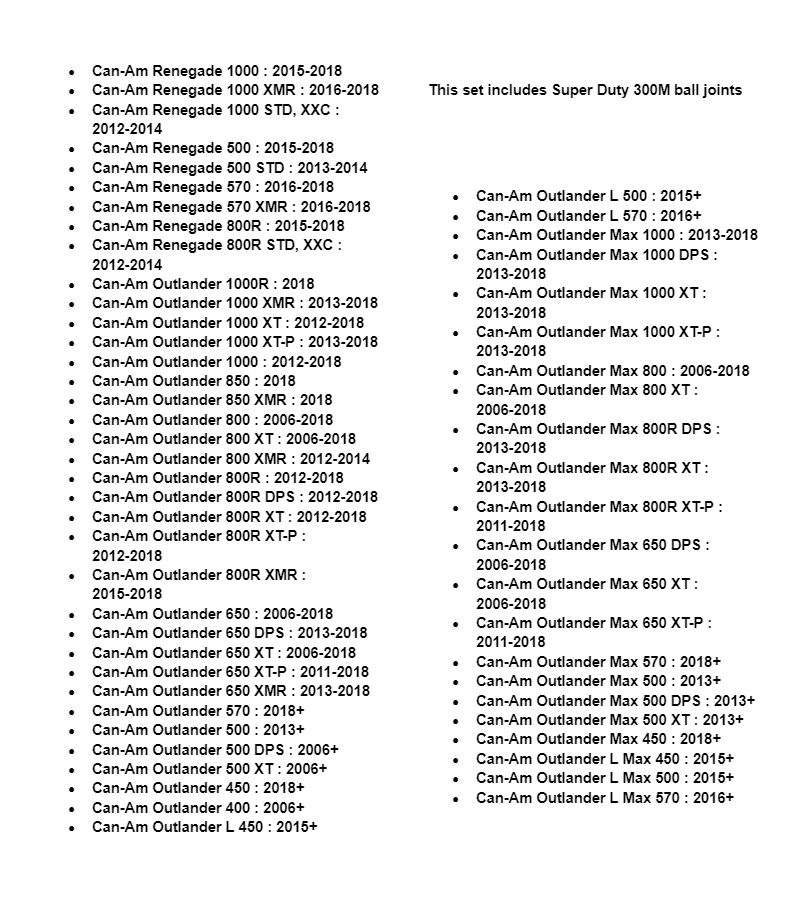

Fitment from the Manufacturer:

• Can-Am Renegade 1000 : 2015-2018
• Can-Am Renegade 1000 XMR : 2016-2018
• Can-Am Renegade 1000 STD, XXC : 2012-2014
• Can-Am Renegade 500 : 2015-2018
• Can-Am Renegade 500 STD : 2013-2014
• Can-Am Renegade 570 : 2016-2018
• Can-Am Renegade 570 XMR : 2016-2018
• Can-Am Renegade 800R : 2015-2018
• Can-Am Renegade 800R STD, XXC : 2012-2014
• Can-Am Outlander 1000R : 2018
• Can-Am Outlander 1000 XMR : 2013-2018
• Can-Am Outlander 1000 XT : 2012-2018
• Can-Am Outlander 1000 XT-P : 2013-2018
• Can-Am Outlander 1000 : 2012-2018
• Can-Am Outlander 850 : 2018
• Can-Am Outlander 850 XMR : 2018
• Can-Am Outlander 800 : 2006-2018
• Can-Am Outlander 800 XT : 2006-2018
• Can-Am Outlander 800 XMR : 2012-2014
• Can-Am Outlander 800R : 2012-2018
• Can-Am Outlander 800R DPS : 2012-2018
• Can-Am Outlander 800R XT : 2012-2018
• Can-Am Outlander 800R XT-P : 2012-2018
• Can-Am Outlander 800R XMR : 2015-2018
• Can-Am Outlander 650 : 2006-2018
• Can-Am Outlander 650 DPS : 2013-2018
• Can-Am Outlander 650 XT : 2006-2018
• Can-Am Outlander 650 XT-P : 2011-2018
• Can-Am Outlander 650 XMR : 2013-2018
• Can-Am Outlander 570 : 2018+
• Can-Am Outlander 500 : 2013+
• Can-Am Outlander 500 DPS : 2006+
• Can-Am Outlander 500 XT : 2006+
• Can-Am Outlander 450 : 2018+
• Can-Am Outlander 400 : 2006+
• Can-Am Outlander L 450 : 2015+
• Can-Am Outlander L 500 : 2015+
• Can-Am Outlander L 570 : 2016+
• Can-Am Outlander Max 1000 : 2013-2018
• Can-Am Outlander Max 1000 DPS : 2013-2018
• Can-Am Outlander Max 1000 XT : 2013-2018
• Can-Am Outlander Max 1000 XT-P : 2013-2018
• Can-Am Outlander Max 800 : 2006-2018
• Can-Am Outlander Max 800 XT : 2006-2018
• Can-Am Outlander Max 800R DPS : 2013-2018
• Can-Am Outlander Max 800R XT : 2013-2018
• Can-Am Outlander Max 800R XT-P : 2011-2018
• Can-Am Outlander Max 650 DPS : 2006-2018
• Can-Am Outlander Max 650 XT : 2006-2018
• Can-Am Outlander Max 650 XT-P : 2011-2018
• Can-Am Outlander Max 570 : 2018+
• Can-Am Outlander Max 500 : 2013+
• Can-Am Outlander Max 500 DPS : 2013+
• Can-Am Outlander Max 500 XT : 2013+
• Can-Am Outlander Max 450 : 2018+
• Can-Am Outlander L Max 450 : 2015+
• Can-Am Outlander L Max 500 : 2015+
• Can-Am Outlander L Max 570 : 2016+

NOTE: 12″ wheels will require a 1″ wheel spacer.

• If machine has a front sway bar, it will be removed and discarded

Features from the Manufacturer:

• Adds 1.5” of forward offset
• Fit up to 28” tires
• 1.25” tubing is 25% larger than stock
• Adjustable pivot blocks for full camber adjustability
• Utilizes stock A-arm bushings
• UV-resistant powder coat finish
• Easy to install
